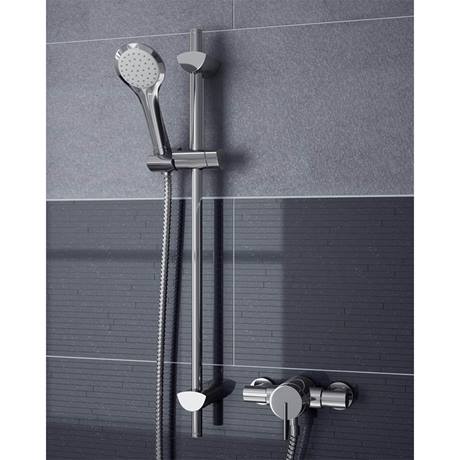

Bristan Sonique2 Exposed Thermostatic Surface Mounted Shower Valve with Adjustable Riser

Bristan Sonique2 Exposed Thermostatic Surface Mounted Shower Valve with Adjustable Riser – Chrome Plated – SOQ2-SHXAR-C

Bristan design and manufacture their products using the finest methods and materials to ensure a high quality product. Comes with a five year guarantee, covering manufacturing faults.

Features

• Single Lever Control – on/off and temperature are controlled by an easily operated single handle
• Thermostatic cartridge maintains showering temperature to +/- 1oC by compensating for changes in the incoming water temperature and pressure providing a stable outlet temperature.
• Automatic shut off in the event of hot or cold water supply failure, thus reducing the risk of injury.
• Factory set to a maximum of 43oC to eliminate the ability to select an unsafe temperature this can be adjusted to suit user preference.
• Supplied with 1.5m shower hose, riser rail, hose retainer and single function handset with rub clean nozzles. Riser brackets can be adjusted to cover existing holes in the wall surface.
• Supplied with a large pair of elbows to give maximum inlet centres of 155mm.
• Chrome plated to BS EN 248.
• Swivel inlet elbows with 110-155mm centres. Valve can be fed from top, bottom or rear.

Product Specification

• Product Code – SOQ2 SHXAR C
• Type – Exposed
• Finish – Chrome
• Style – Contemporary
• Construction – Body is of brass construction
• Cartridge Type – Thermostatic Cartridge
• Supply – Suitable for all plumbing systems (Preferably balanced)
• Inlet Connections – 15mm compression elbows
• Outlet Connection – G 1/2
• Working Pressures – Min 0.1bar, Max 5.0bar
• Maximum Static Pressure 10.0bar
• Dimensions for Fitting – 148-152mm inlet centres
• Will suit minimum wall cavity depth: 68-77mm

Guarantee: 5 years covering manufacturing faults.

SOQ2-SHXAR-C
